Home / Sturgeon / Rods & Reels / PENN SQUALL II LEVER DRAG
1 1

PENN

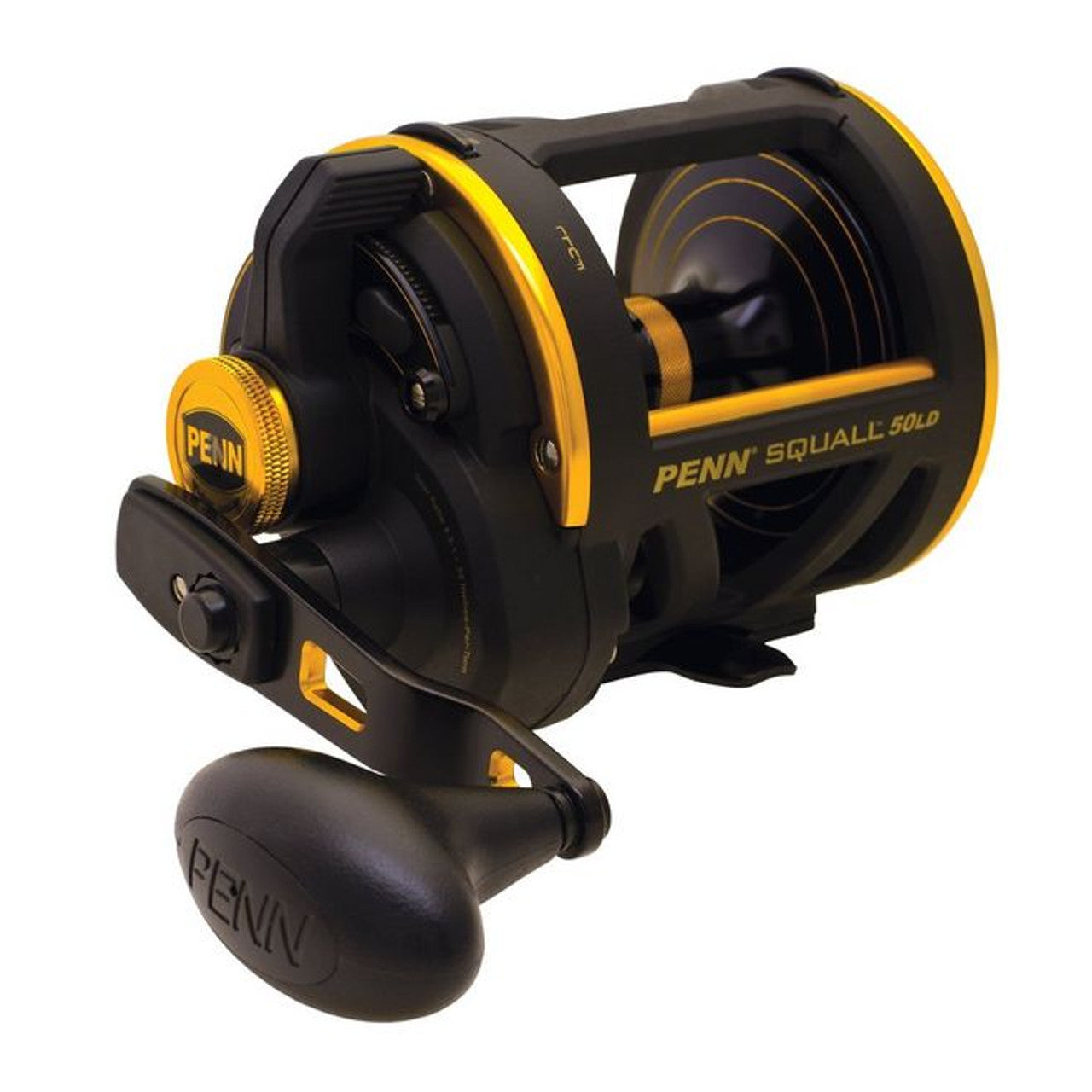

PENN SQUALL II LEVER DRAG

PENN SQUALL II LEVER DRAG

$279.95 CAD
$279.95 CAD $279.95 CAD
Sale Sold out
Shipping calculated at checkout.
SIZE
SQUALL LD HAND

DESCRIPTION

The PENN Squall Lever Drag is lightweight and ergonomic. Made from graphite for its lightweight and corrosion resistant benefits. Stainless steel gears with a high speed gear ratio make the Squall LD perfect for nearshore trolling for kings and dolphin. Our proprietary Dura-Drag system will be there when you hook that big wahoo and he tries to smoke your reel! Left hand available in the 40 and 60 sizes.

Prop 65

FEATURES

  • Lightweight graphite frame and sideplates
  • Forged and machined aluminum spool with Line Capacity Rings
  • Stainless steel main and pinion gears
  • Dura-Drag system
  • 6 stainless steel bearings
  • Silent double-dog anti-reverse
  • Switchblade lugs on the 50 and 60 size

COMPARE MODEL SPECS

MODEL NUMBER SQL30LD SQL40LD SQL50LD SQL60LD SQL40LDLH SQL60LDLH
SKU 1206093 1206094 1206095 1206096 1238641 1238642
ANTI-REVERSE FEATURE Multi-Stop Multi-Stop Multi-Stop Multi-Stop Multi-Stop Multi-Stop
BEARING COUNT 6 6 6 6 6 6
BRAID CAPACITY YD/LB 1025/20 775/30 550/50 1075/30 750/50 625/65 1050/50 875/65 750/80 1050/65 900/80 775/100 1075/30 750/50 625/65 1050/65 900/80 775/100
BRAKING SYSTEM None None None None None None
BRAND PENN PENN PENN PENN PENN PENN
COLOR Black Gold Black Gold Black Gold Black Gold Black Gold Black Gold
DAM SCHEMATIC ID TRQ25G REV 1 TRQ40G REV 3 TRQ40G REV 1 FATHOM SD12 REV 4 1238442 704Z Rev 10 706Z Rev 6
DRAG MATERIAL Dura Drag Dura Drag Dura Drag Dura Drag Dura Drag Dura Drag
DRAG TYPE Lever Drag Lever Drag Lever Drag Lever Drag Lever Drag Lever Drag
GEAR RATIO 6.1:1 5.1:1 4.3:1 4.3:1 5.1:1 4.3:1
MAX DRAG LB 13lb | 5.8kg 20lb | 9.0kg 27lb | 12.2kg 33lb | 14.9kg 20lb | 9.0kg 33lb | 14.9kg
MONO CAPACITY M/MM 440/0.46 300/0.56 250/0.61 350/0.56 300/0.61 220/0.71 457/0.56 384/0.61 283/0.71 457/0.61 338/0.71 302/0.76 350/0.56 300/0.61 220/0.71 457/0.61 338/0.71 302/0.76
MONO CAPACITY YD/LB 390/20 350/25 260/30 490/25 360/30 300/40 500/30 420/40 310/50 500/40 370/50 330/60 490/25 360/30 300/40 500/40 370/50 330/60
PACKAGE COUNT 1 1 1 1 1 1
PRE-SPOOLED YD/LB Not Pre-Spooled Not Pre-Spooled Not Pre-Spooled Not Pre-Spooled Not Pre-Spooled Not Pre-Spooled
RECOVERY RATE 37" | 94cm 37" | 94cm 35" | 89cm 35" | 89cm 37" | 94cm 35" | 89cm
REEL HANDLE POSITION Right Right Right Right Left Left
REEL SIZE 30 40 50 60 40 60
REEL SPOOL MATERIAL Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
SPARE SPOOL MATERIAL No Spare Spool No Spare Spool No Spare Spool No Spare Spool No Spare Spool No Spare Spool
WEIGHT 18.2 oz 20.9 oz 27.4 oz 28.1 oz 20.9 oz 28.1 oz
MODEL NUMBER SQL30LD SQL40LD SQL50LD SQL60LD SQL40LDLH SQL60LDLH
SKU 1206093 1206094 1206095 1206096 1238641 1238642
ANTI-REVERSE FEATURE Multi-Stop Multi-Stop Multi-Stop Multi-Stop Multi-Stop Multi-Stop
BEARING COUNT 6 6 6 6 6 6
BRAID CAPACITY YD/LB 1025/20 775/30 550/50 1075/30 750/50 625/65 1050/50 875/65 750/80 1050/65 900/80 775/100 1075/30 750/50 625/65 1050/65 900/80 775/100
BRAKING SYSTEM None None None None None None
BRAND PENN PENN PENN PENN PENN PENN
COLOR Black Gold Black Gold Black Gold Black Gold Black Gold Black Gold
DAM SCHEMATIC ID TRQ25G REV 1 TRQ40G REV 3 TRQ40G REV 1 FATHOM SD12 REV 4 1238442 704Z Rev 10 706Z Rev 6
DRAG MATERIAL Dura Drag Dura Drag Dura Drag Dura Drag Dura Drag Dura Drag
DRAG TYPE Lever Drag Lever Drag Lever Drag Lever Drag Lever Drag Lever Drag
GEAR RATIO 6.1:1 5.1:1 4.3:1 4.3:1 5.1:1 4.3:1
MAX DRAG LB 13lb | 5.8kg 20lb | 9.0kg 27lb | 12.2kg 33lb | 14.9kg 20lb | 9.0kg 33lb | 14.9kg
MONO CAPACITY M/MM 440/0.46 300/0.56 250/0.61 350/0.56 300/0.61 220/0.71 457/0.56 384/0.61 283/0.71 457/0.61 338/0.71 302/0.76 350/0.56 300/0.61 220/0.71 457/0.61 338/0.71 302/0.76
MONO CAPACITY YD/LB 390/20 350/25 260/30 490/25 360/30 300/40 500/30 420/40 310/50 500/40 370/50 330/60 490/25 360/30 300/40 500/40 370/50 330/60
PACKAGE COUNT 1 1 1 1 1 1
PRE-SPOOLED YD/LB Not Pre-Spooled Not Pre-Spooled Not Pre-Spooled Not Pre-Spooled Not Pre-Spooled Not Pre-Spooled
RECOVERY RATE 37" | 94cm 37" | 94cm 35" | 89cm 35" | 89cm 37" | 94cm 35" | 89cm
REEL HANDLE POSITION Right Right Right Right Left Left
REEL SIZE 30 40 50 60 40 60
REEL SPOOL MATERIAL Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
SPARE SPOOL MATERIAL No Spare Spool No Spare Spool No Spare Spool No Spare Spool No Spare Spool No Spare Spool
WEIGHT 18.2 oz 20.9 oz 27.4 oz 28.1 oz 20.9 oz 28.1 oz
View full details
